E-55
Ender window E 55 offers insulated interior door and window solutions with 55 mm depth for residents...
Details

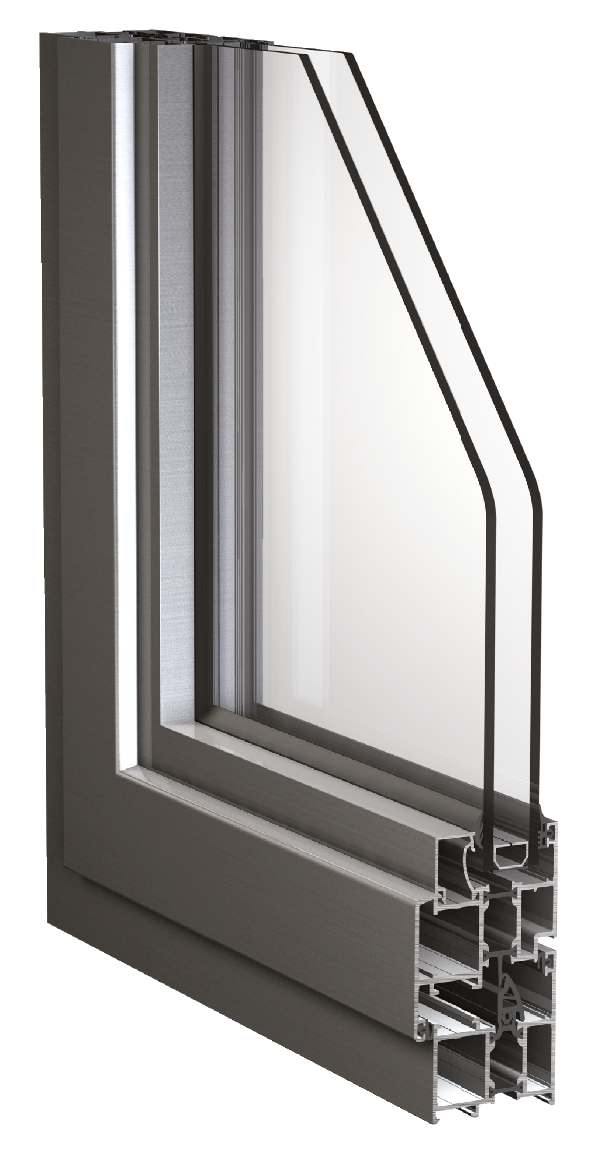

Ender window E 55 offers insulated interior door and window solutions with 55 mm depth for residents, business centers, airports, exhibitions centers and shopping centers.
By using the same depth of heat uninsulated EDR 55 door and window systems, the design of interior and exterior building solutions with equal width can be made.
Specifications and benefits:
- 55 mm depth
- Insulation solutions according to the standards
- Varied frontal profile width
- Water resistance up to 600 Pa
- Solutions for inside and outside openning door, normal opennig window, pivot window,swing door, etc.
Depth compatible with uninsulated EDR 55 - Drainage channel according to European Standards
- Common accessory solutions with other systems
- Highest standards in terms of design and ease of use
Dimensions
| Frame | 55 mm - 70 mm |
| Sash | 63,5 mm |
| Insulation barrier | 14,8 mm |
| Uf | 3,60 – 3,00 W/m2K |
| Profile Wall Thickness | 1,5 mm - 1,8 mm - 2,00 mm |
| Maximum Glass Thichness | 30 mm |
E-55 Architectural Catalog Download (4.50 MB)
