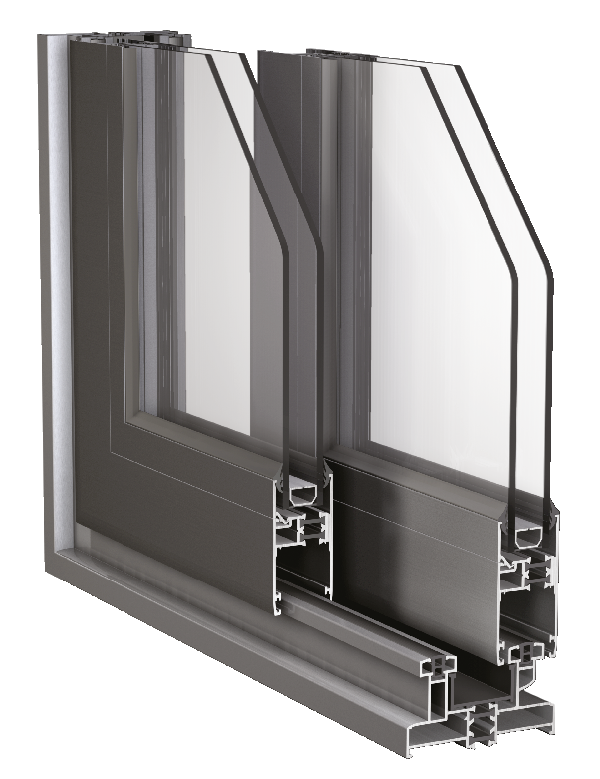

E-115
Ender Lift&Slide E 115 is high heat insulated lift and slide system. Ender Lift&Slide E 115 system provides easy and silent access to balcony...
Details
Ender Lift&Slide E 115 is high heat insulated lift and slide system.
Ender Lift&Slide E 115 system provides easy and silent access to balcony, terrace and winter gardens, and ideal for restaurants, hotels, office buildings and high quality residents
Specifications and benefits:
- 135 mm depth
- High standard insulation solutions
- Varied frontal width for frame and sash profiles
- Sash lift capacity up to 300 kg
- Stainless steel rail usage
- Water resistance up to 600 Pa
- Drainage channel according to European Standards
- Narrow frontal widths of the sash frame and
- maximum light penetration
- Maximum use of place
- Easy to operate with one hand Highest standards in terms of design and ease of use
Dimensions
| Frame | 115 mm - 135 mm – 180 mm |
| Sash | 50 mm |
| Insulation barrier | 14,8 mm |
| Uf | 2,60 – 2,20 W/m2K |
| Profile Wall Thichness | 1,6 mm - 2,0 mm |
| Maximum Glass Thickness | 32 mm |
| Sash Weight | Up to 300 kg |
E-115 Architectural Catalog Download (5.29 MB)
